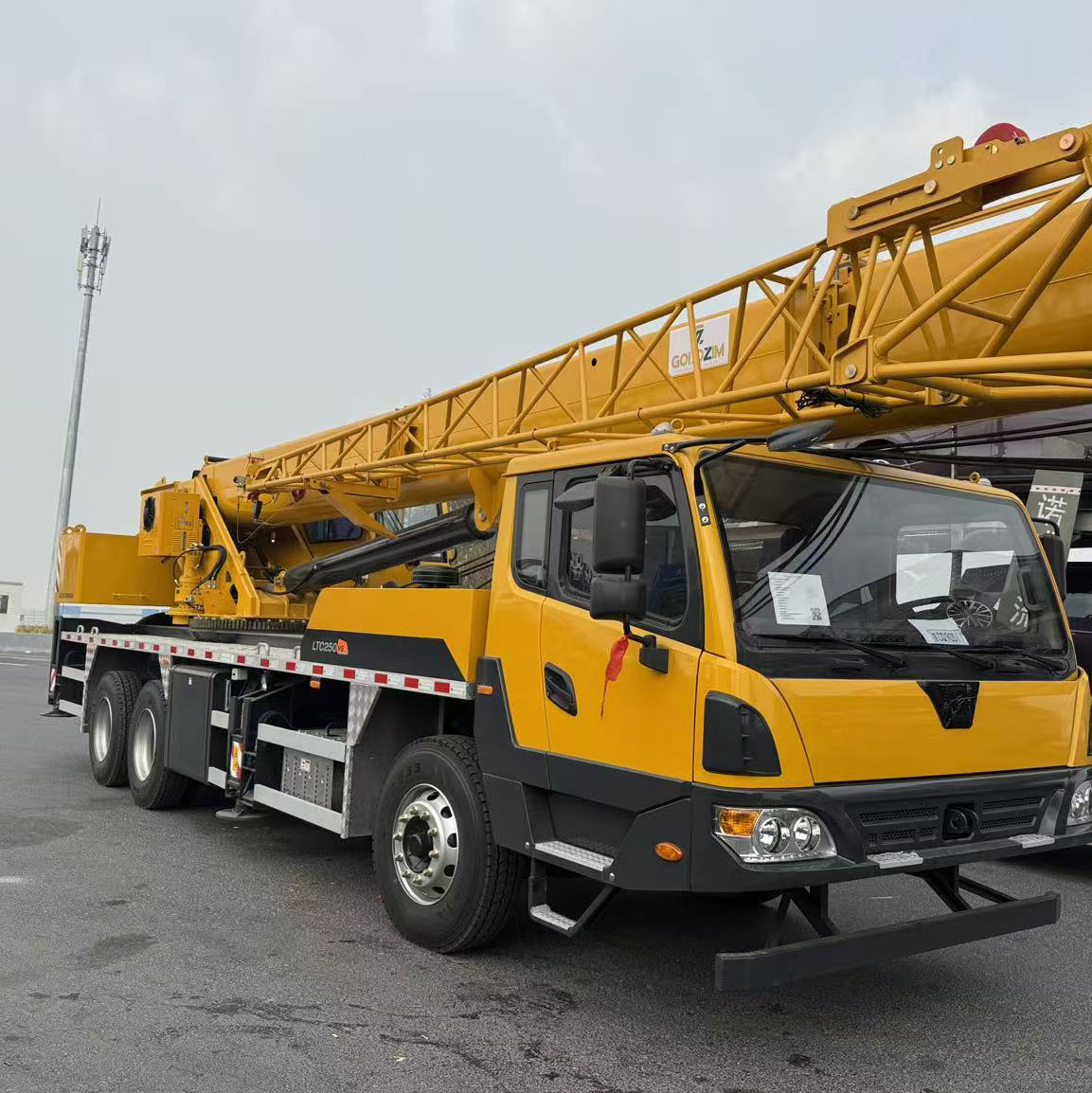

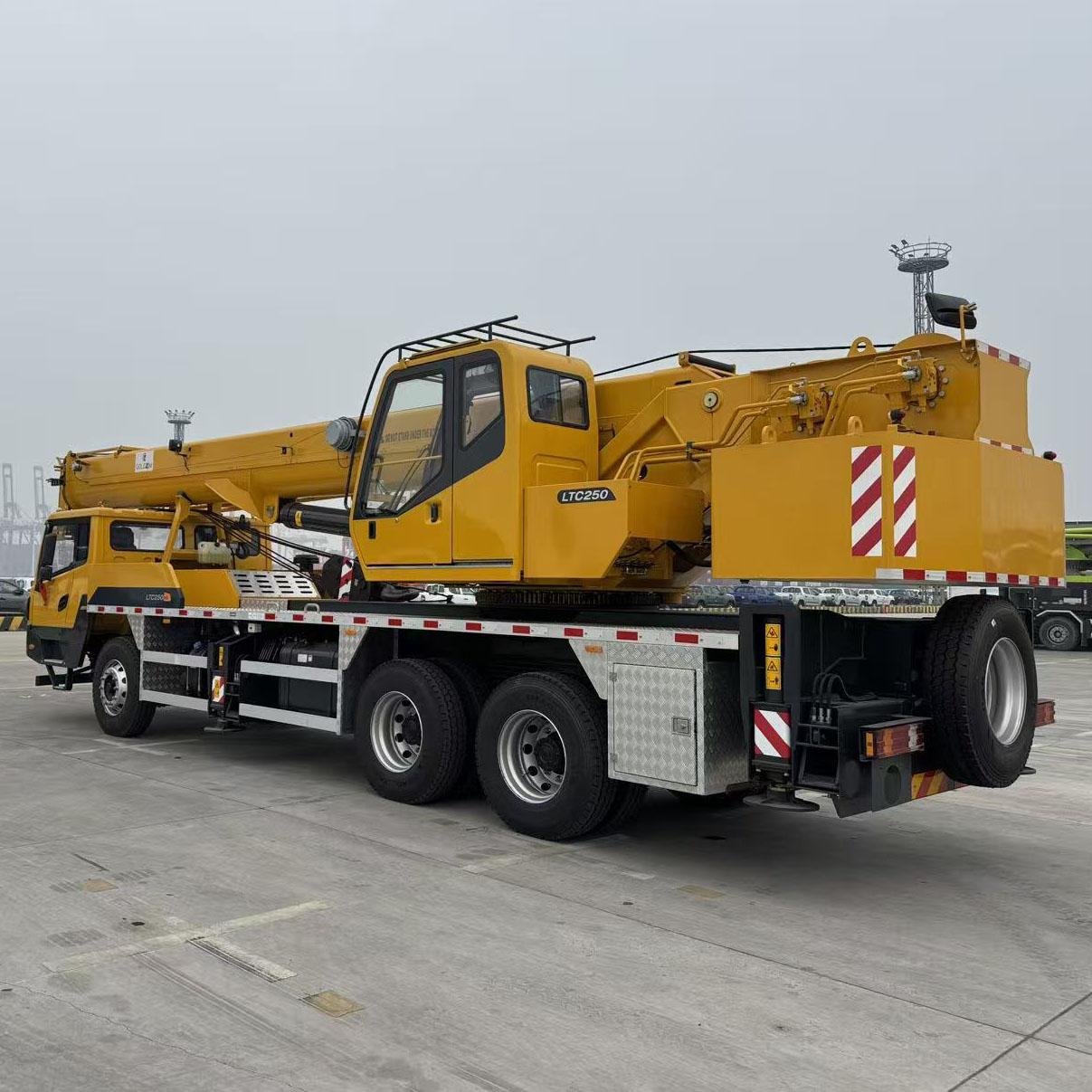

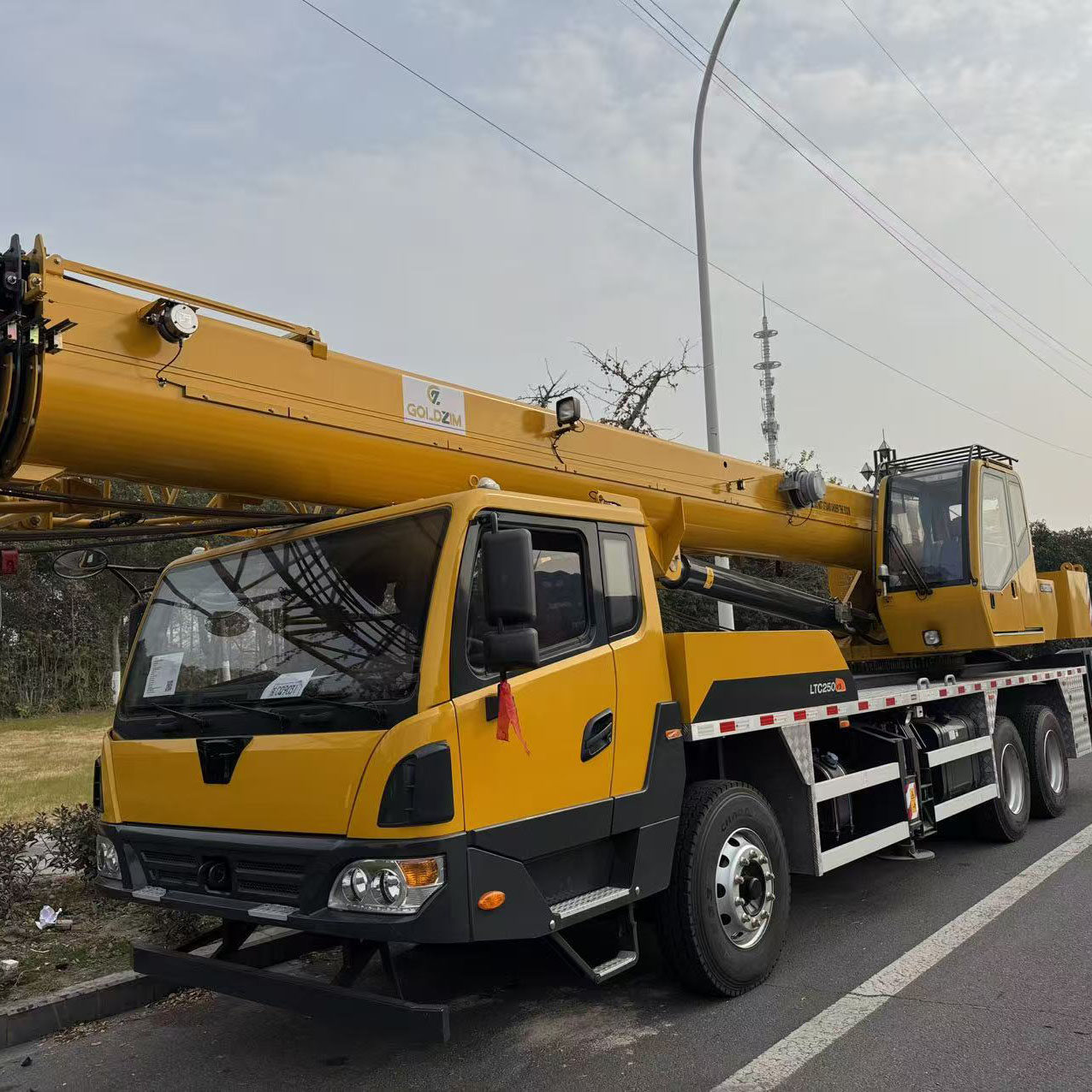

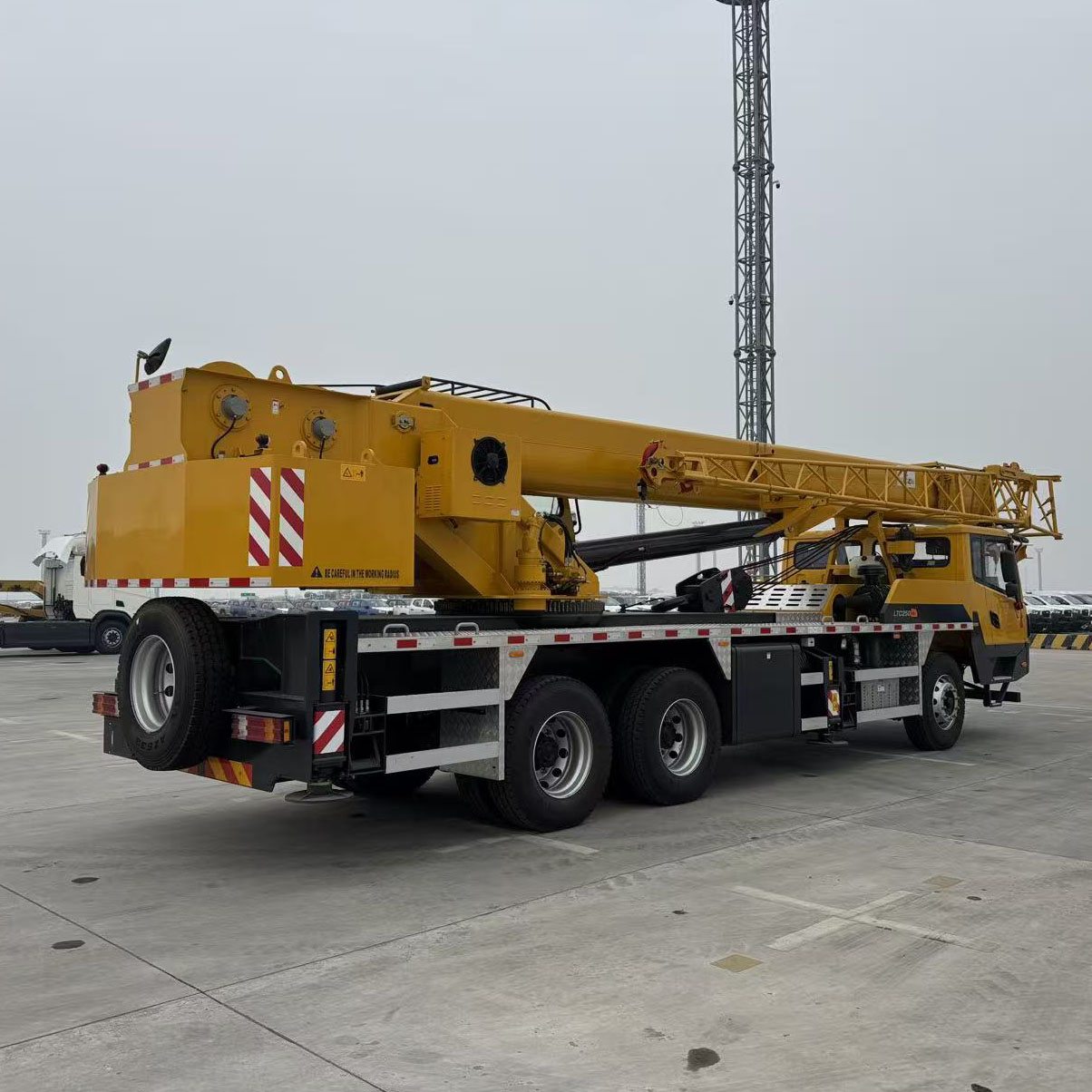

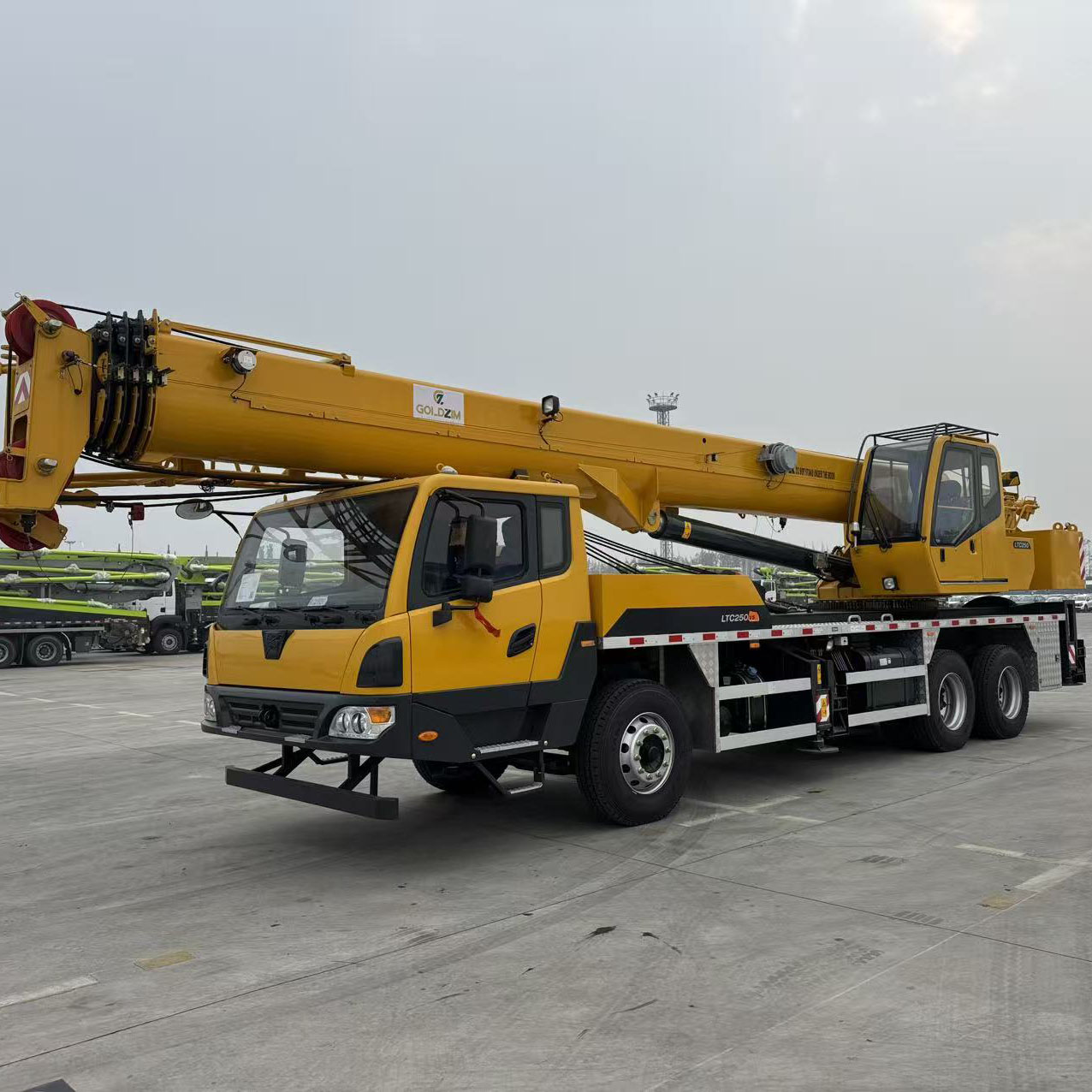

LIUGONG LTC250V5 Lifting Machinery Truck Crane
Model:
LTC250V5
View All >
Category:
Lifting Machinery
Product:
Truck Crane
Brand Name:
LIUGONG
Dimension (mm):
12500*2600*3445mm
Operating weight (kg):
31600kg
Origin:
China
Min Order Quantity:
1 Unit
Delivery Time:
Summary
Max. Lifting Capacity:
25Ton
Max. Lifting Height:
50m
Main Boom Length:
41m
Number of Axles:
2
Boom Sections:
4
Engine Brand:
ShangChai
Maximum Engine Power :
221kw
Specifications
Packaging & Shipping
Overall Dimensions (L×W×H):
12500*2600*3445mm
Overall Weight:
31600kg
Shipping Method:
Ro-Ro Vessel
Delivery Period:
30-45 days
Certificate:
CE,UKCA
Origin:
China
HS Code :
8705109100
Details
Main arm length10700-42000 mm
Engine rated power221kW@2500rpm
Maximum rated lifting weight25 t
Maximum lifting moment of basic boom1132 kN·m
Overall length12840 mm
Overall width2600 mm
Overall height3480 mm
Total mass of the whole machine34000 kg
Front axle load8000 kg
Rear axle load13000/13000 kg
engine modelISD300 50/WP7.270E51
Maximum engine power221kW@2500rpm, 199kW@2100rpm
Engine maximum output torque1100N·m@1200~1800rpm, 1160N·m@1200~1700rpm
Maximum travel speed80 km/h
Minimum turning radius11 m
Approach angle19 °
Departure angle14 °
Maximum grade0.4
Fuel consumption per hundred kilometers≤40 L
Maximum rated total lifting capacity25 t
Turntable tail radius of gyration3.367 m
Maximum lifting moment (basic boom)1132 kN·m
Maximum lifting moment (longest main boom)782 kN·m
Outrigger span (horizontal×vertical)6.4×5.6 m
Basic boom length10.7 m
The longest main boom length42 m
Longest main boom + auxiliary boom51 m
Maximum speed of single rope of main winch (no load)130 m/min
Maximum speed of auxiliary winch single rope (no load)130 m/min
Boom fully extended/retracted time90/105 s
Full lifting/falling time of boom40/55 s

TC250V5 25-Ton Mobile Truck Crane Power, Precision, and Unmatched Job Site Versatility

Engineered for professionals who demand reliability and performance, the LTC250V5 25-Ton Truck Crane is a superior lifting solution that turns challenging projects into manageable tasks. It seamlessly blends robust power with intelligent engineering to deliver exceptional efficiency across construction, industrial, and logistics applications.
Engineered for Superior Performance & Safety
* 25-Ton Lifting Mastery: Tackle heavy-duty loads with confidence. The crane delivers full 25-ton capacity with consistent power across its working radius, ensuring reliable performance for the most demanding lifts.
* Unshakable Stability Foundation: An optimized U-shaped boom made of high-strength steel works in concert with a wide-span outrigger system. This combination creates an exceptionally stable platform for safe operation, even on uneven or constrained job sites.
* Intelligent Hydraulic Power: The advanced high-efficiency hydraulic system provides smooth, precise, and responsive control.This allows for pinpoint load positioning, reduces operator effort, and contributes to lower overall fuel consumption.
Designed for Maximum Productivity & Uptime
* Rapid Deployment: Get to work faster. Features like one-touch hydraulic outriggers minimize setup time, allowing you to
transition from transport to operational mode in minutes.
* True Mobility Mounted on a robust truck chassis, the LTC250V5 offers excellent road mobility. Move swiftly and legally between multiple sites, maximizing your asset utilization and project flexibility.
Built for Enduring Reliability
* Core Strength Construction: Critical structural components are fabricated from premium, high-tensile steel and subjected to rigorous FEM analysis and testing. This ensures the crane withstands the stresses of daily heavy lifting for years to come.
* Quality Assured: Each unit undergoes stringent quality control checks, adhering to strict performance and safety standards,guaranteeing you receive a product of proven integrity.
* Dependable System Integrity: The use of high-quality, brand-name components in hydraulic and electrical systems minimizes leakage and failure risks, ensuring dependable operation in harsh conditions and reducing potential downtime.


Your Multi-Application Partner

The LTC250V5 excels in diverse roles, including:
 * Construction Sites: Lifting precast concrete, steel beams, and construction materials.
 * Infrastructure Projects: Assisting in bridge work, utility installation, and pipeline maintenance.
 * Industrial Facilities: Installing machinery, relocating equipment, and plant maintenance.
 * Logistics Hubs: Handling heavy cargo in ports, rail yards, and storage facilities.
 * Public Service: Supporting power line maintenance and emergency recovery operations.
