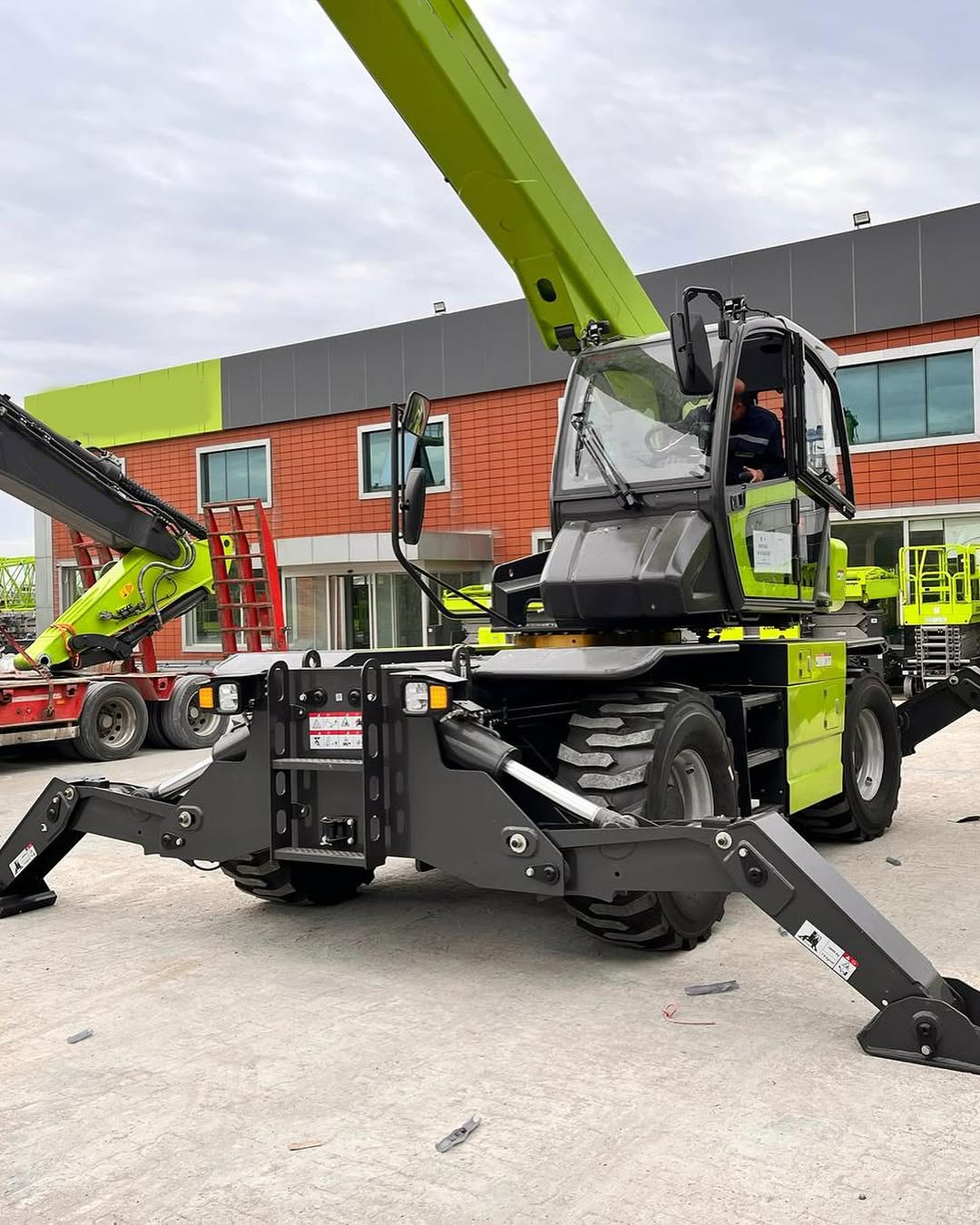

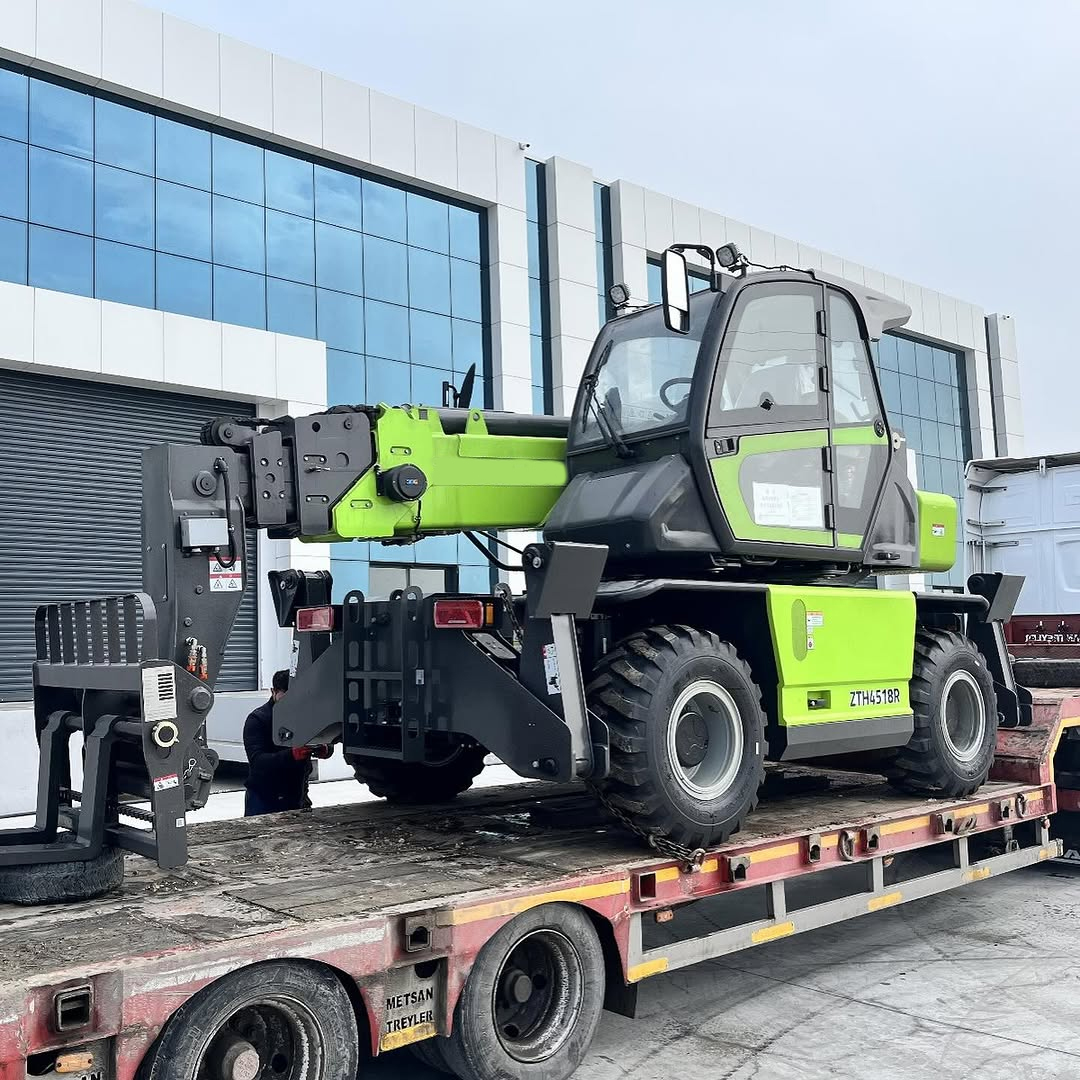

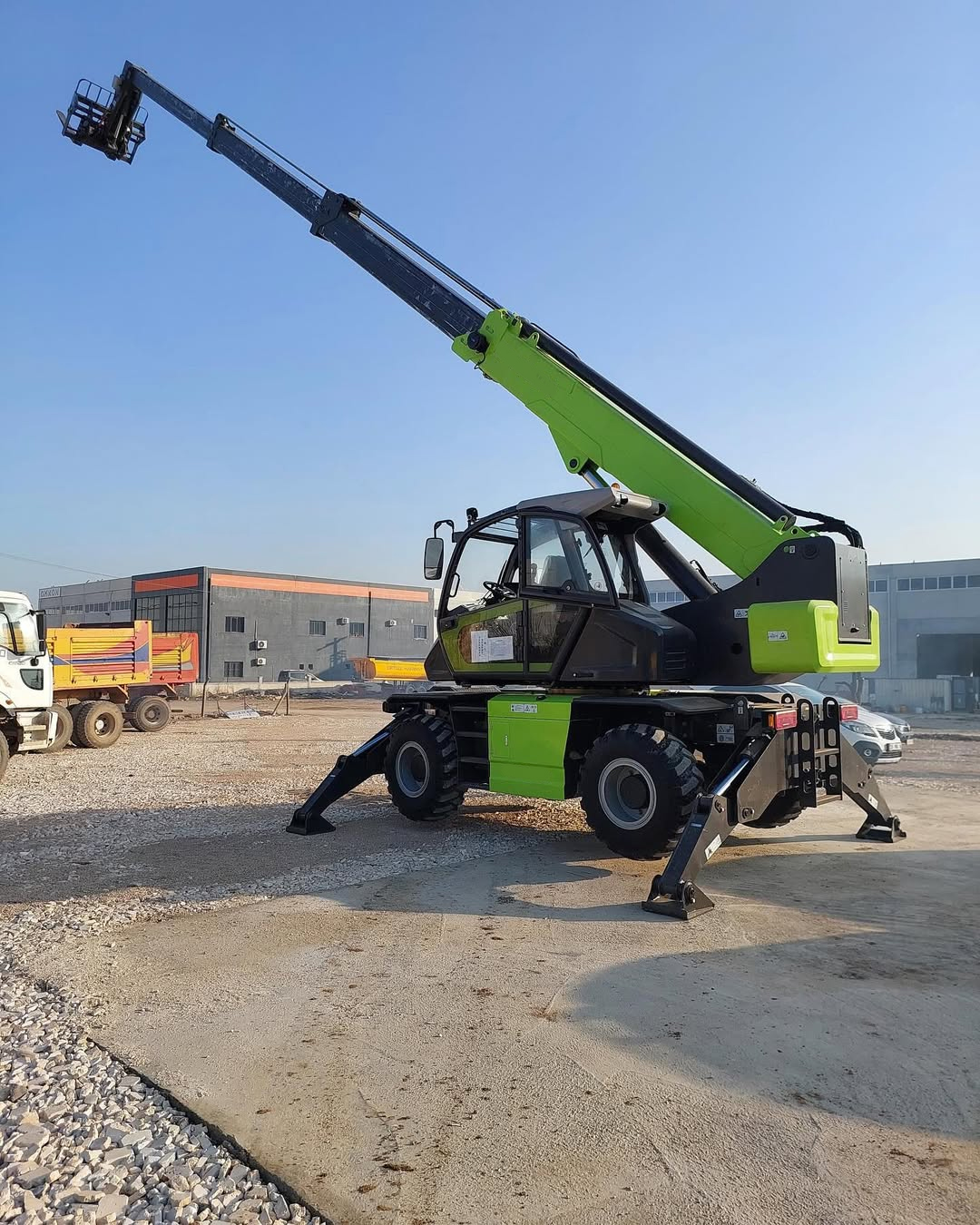

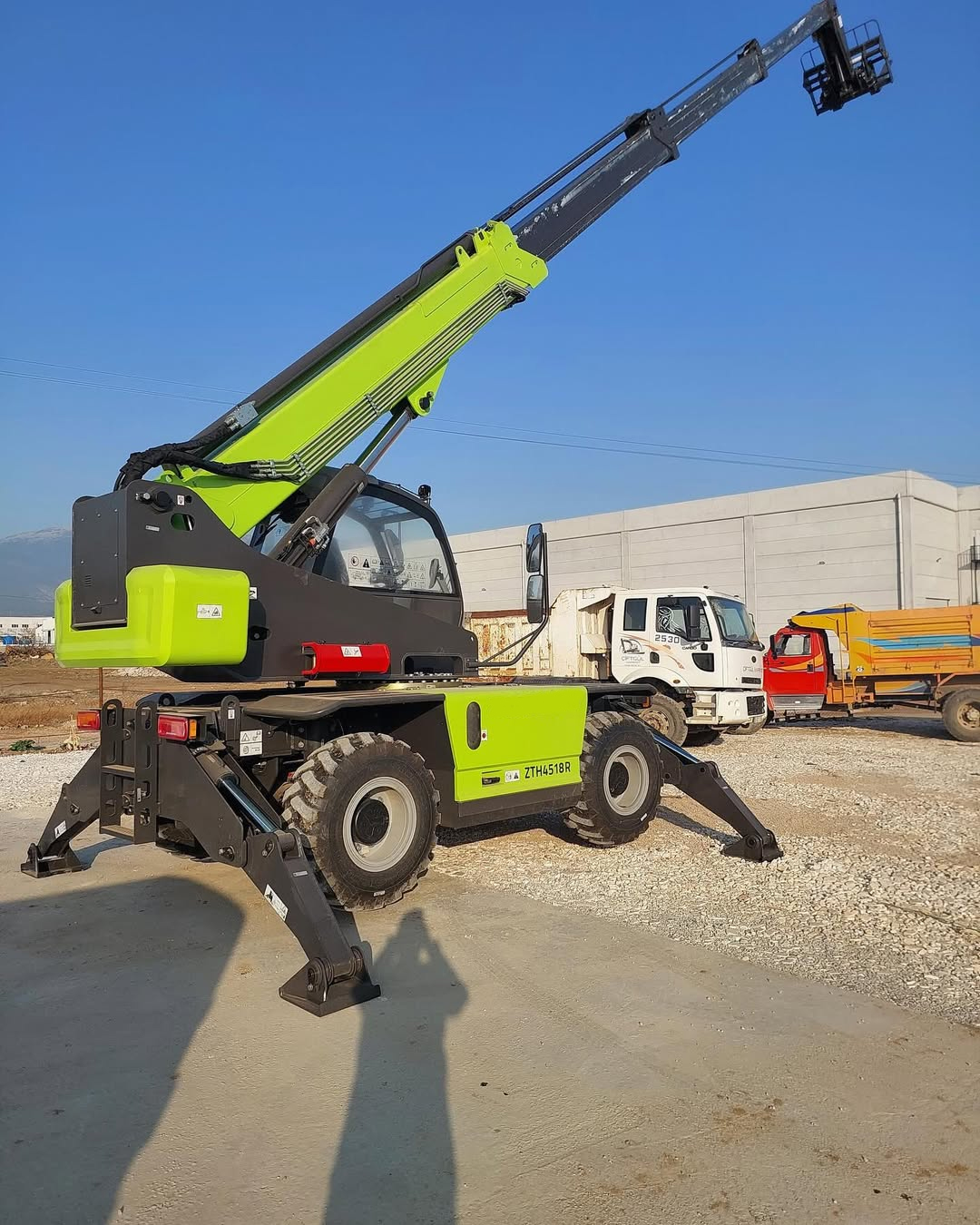

ZOOMLION ZTH4518R Logistics Machinery Telescopic Handler
Model:
ZTH4518R
View All >
Category:
Logistics Machinery
Product:
Telescopic Handler
Brand Name:
ZOOMLION
Dimension (mm):
7330*2450*3110mm
Operating weight (kg):
14300kg
Origin:
ZOOMLION
Key Attributes
Rated Load Capacity:
4.5Ton
Max Working Height:
18m
Max Horizontal Reach:
15.1m
Lifting Speed (Loaded/Unloaded):
Engine Power:
90kW
Tire Type:
405/70-20 18PR
Max. traction force:
90kN
Wheelbase:
2.6m
Min. ground clearance:
370mm
Weight:
14300kg
Packaging & Shipping
Overall Dimensions (L×W×H):
7330*2450*3110mm
Overall Weight:
14300kg
Shipping Method:
RORO/BULK
Delivery Period:
30Days
Certificate:
CE
Origin:
ZOOMLION
HS Code :
Detailed Specifications
Size
A Overall length7.33m24ft 1in
B Overall width2.45m8ft
C Overall height3.11m10ft 2in
F Wheelbase2.6m8ft 6in
G Min ground clearance0.37m1ft 3in
Performance
Max lift height18m59ft 1in
Rated capacity4500kg9920lb
Lift capacity at max height3000kg6613lb
Max forward reach15.1m49ft 6in
Lift capacity at max reach600kg1322lb
Weight14300kg31526lb
Max traction force90kN20232lb
Turning radius - outside3.6m11ft 9in
Power
EngineCummins QSF3.8_02/Cummins F4.5/Cummins F3.8_01Cummins QSF3.8_02/Cummins F4.5/Cummins F3.8_01
Rated power93/89/90kw125/119/121Hp
Max torque500Nm368lb*ft
Cylinder44
Displacement3800/4500/3800ml1/1.18gal1gal
TransmissionHydrostaticHydrostatic
Max drive speed35km/h21.75mph
SteeringFront Wheels/4WS/CrabFront Wheels/4WS/Crab
Tire
Type405/70-20 18PR405/70-20 18PR
Hydraulic
Implement pumpPiston pumpPiston pump
Hydraulic flow - pressure107L/min-280bar28.26gal/min-280bar
Tank
Hydraulic tank capacity150L39.6gal
Fuel tank capacity140L37gal
Fork
Fork size1220mm×150mm×50mm4ft×5.9in×1.968in
Fork rotary118°118°
Working speed
Boom up/down26/19s26/19s
Boom extend/retract19/19s19/19s
Fork lift6s6s
Fork retract5s5s
Rotate speed2.3r/min2.3r/min
Outrigger lowering6s6s
Outrigger retracting5s5s
