HELI CPCD50 Logistics Machinery Forklift
Model:
CPCD50
View All >
Category:
Logistics Machinery
Product:
Forklift
Brand Name:
HELI
Dimension (mm):
4320x1530x2350mm
Operating weight (kg):
6750kg
Origin:
China
Key Attributes
Rated Load Capacity:
5 Ton
Tyre Type:
Wheeled
Load Center Distance:
600mm
Power Type:
/
Mast Type:
Three Stage Mast
Fork Length:
1220 mm(48.03in)
Model Number :
CPCD50
Overhead Guard Height :
2180mm
Turning Radius :
2460mm
Front Wheel-base :
2450mm
Overall Width :
1225mm
Lift height :
3000mm
Packaging & Shipping
Overall Dimensions (L×W×H):
4320x1530x2350mm
Overall Weight:
6750kg
Shipping Method:
Wheel
Delivery Period:
15 days
Certificate:
CE, EPA,CO, IOS
Origin:
China
HS Code :
8427900000
Detailed Specifications

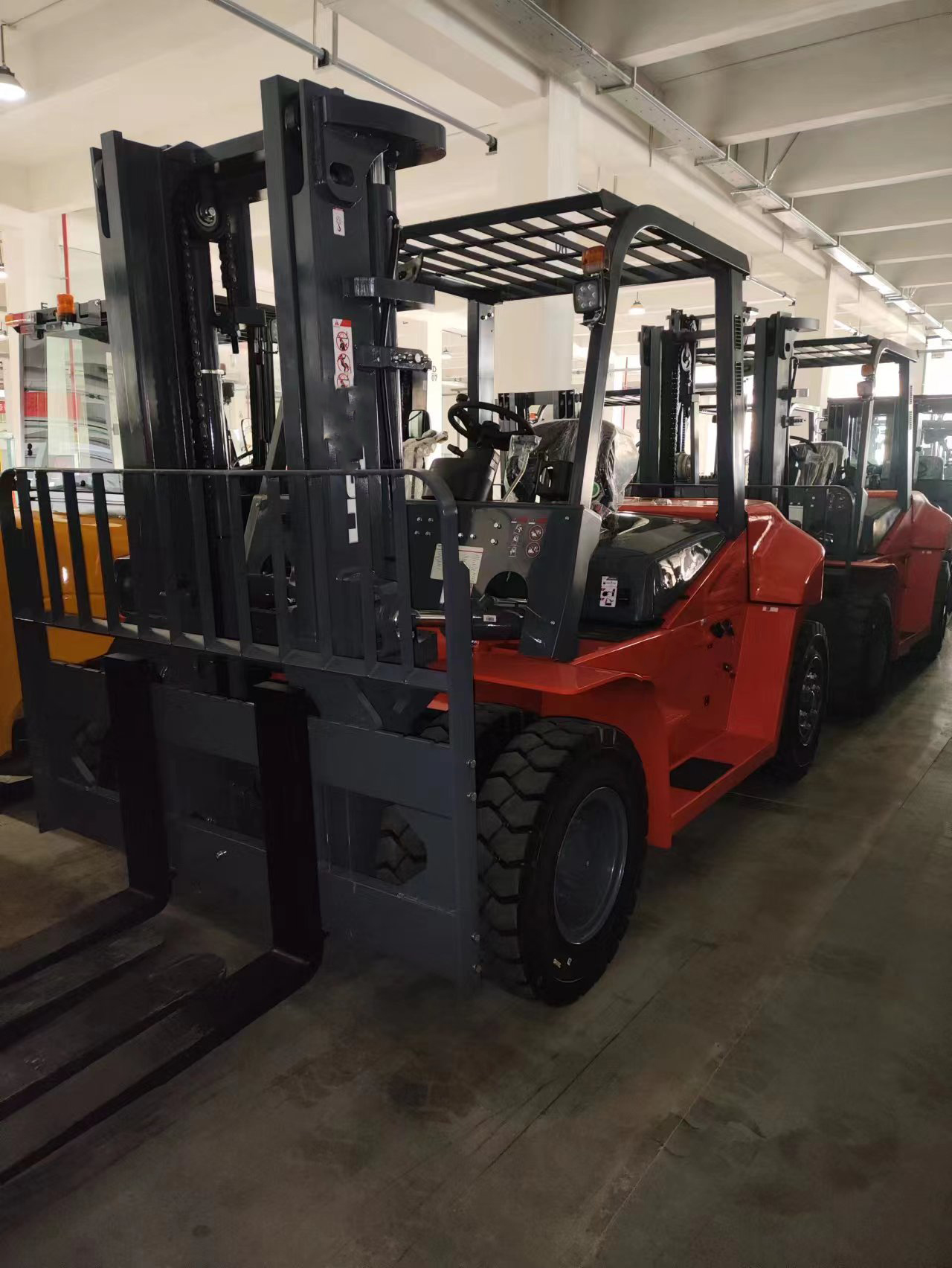

CPCD50 Heli Brand 5Ton Diesel Forklift

Products Description

1. Transmission box, drive axle and other core parts are self-made by HELI, their box manufacturing and assembly equipment has reached international advanced level. The key parts of the box are imported , and box assembly failure rate is low, and has the best quality of domestic box.
2. With attachment of various types of the masts, all use double built-in hose pulley block, and have compact structure, beautiful appearance, good passage capacity , are first adopted in our country (Patent technology).
3. All lifting mast pipeline have equipped with explosion proof safety valve to ensure the safety of the lifting process.
4. Exhaust system use corrugated pipe to realize flexible connection with frame , and reduce the vibration and noise of the whole vehicle.
5. The steering axle and the frame connection place has done the shock absorption processing, and the shock of whole vehicle has reduced by 30 %.
6. Using intake muffler can suppress the intake pulse, so can reduce the intake noise.
7. Hose joint and transition joint in pipeline are sealed with cone form, which has good sealing effect.
8. Steering trapezium use optimal program, and the maximum error is less than 1°, can reduce tire wear and improve service life.



Specification

SpecificationUnitCPCD50
Power typeDiesel
Load capacitykg5000
Load centermm600
Pallet fork maximum height (with block shelf)mm4400
Maximum lifting heightmm3000
Free hoisting heightmm200
Overall height (upper frame protection)mm2450
Full length (with cargo fork)mm4710
Full widthmm2045
The minimum ground clearance (the door)mm200
The minimum turning radius (outer)mm3240
Least square channel widthmm3200
Pallet fork a*b*cmm1220*150*55

Company Profile


Company Profile
  • 40'HQ Container
  • RoRo Shipmen
  • Railway Transportation
  • Flat Rack Container
  • Bulk Shipment

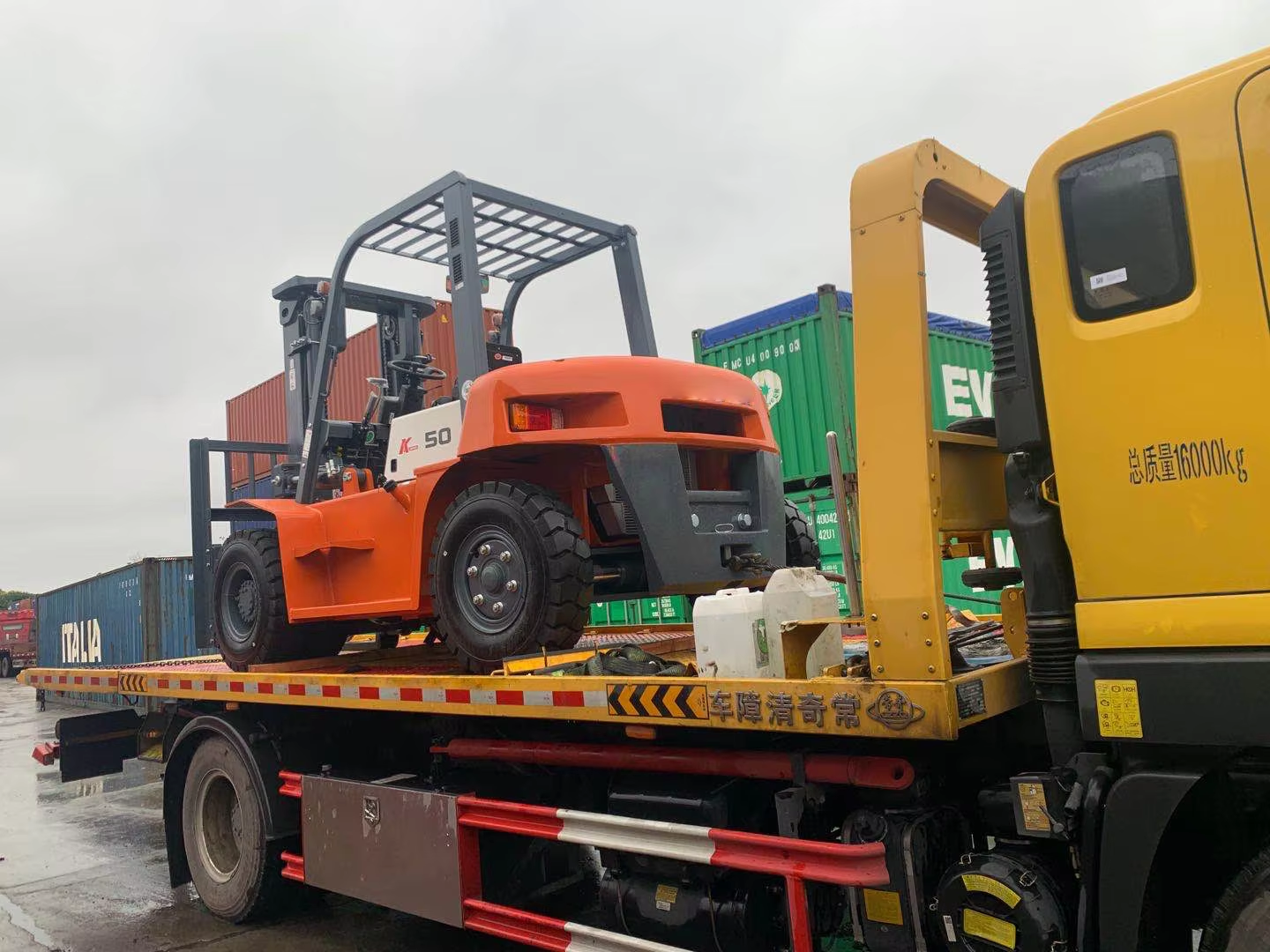

  • Road Transportation
