SHANTUI SD16 Earthmoving Machinery Bulldozer
Model:
SD16
View All >
Category:
Earthmoving Machinery
Product:
Bulldozer
Brand Name:
SHANTUI
Dimension (mm):
5140x3455x3032mm
Operating weight (kg):
17000kg
Origin:
35days
Key Attributes
Engine Power:
131kW
Engine Brand:
Weichai
Blade Type:
Straight-tilt blade
Blade Capacity:
3.5m³
Track Shoe Width:
510mm
Max. Cutting Depth:
540mm
Track shoe type:
Single grouser
Track gauge:
1880mm
Blade type:
Straight tilt/U
Blade capacity:
3.5/4.8m³
Packaging & Shipping
Overall Dimensions (L×W×H):
5140x3455x3032mm
Overall Weight:
17000kg
Origin:
China
Shipping Method:
Bulk
Certificate:
Provided
Delivery Period:
35days
HS Code:
8429119000
Detailed Specifications

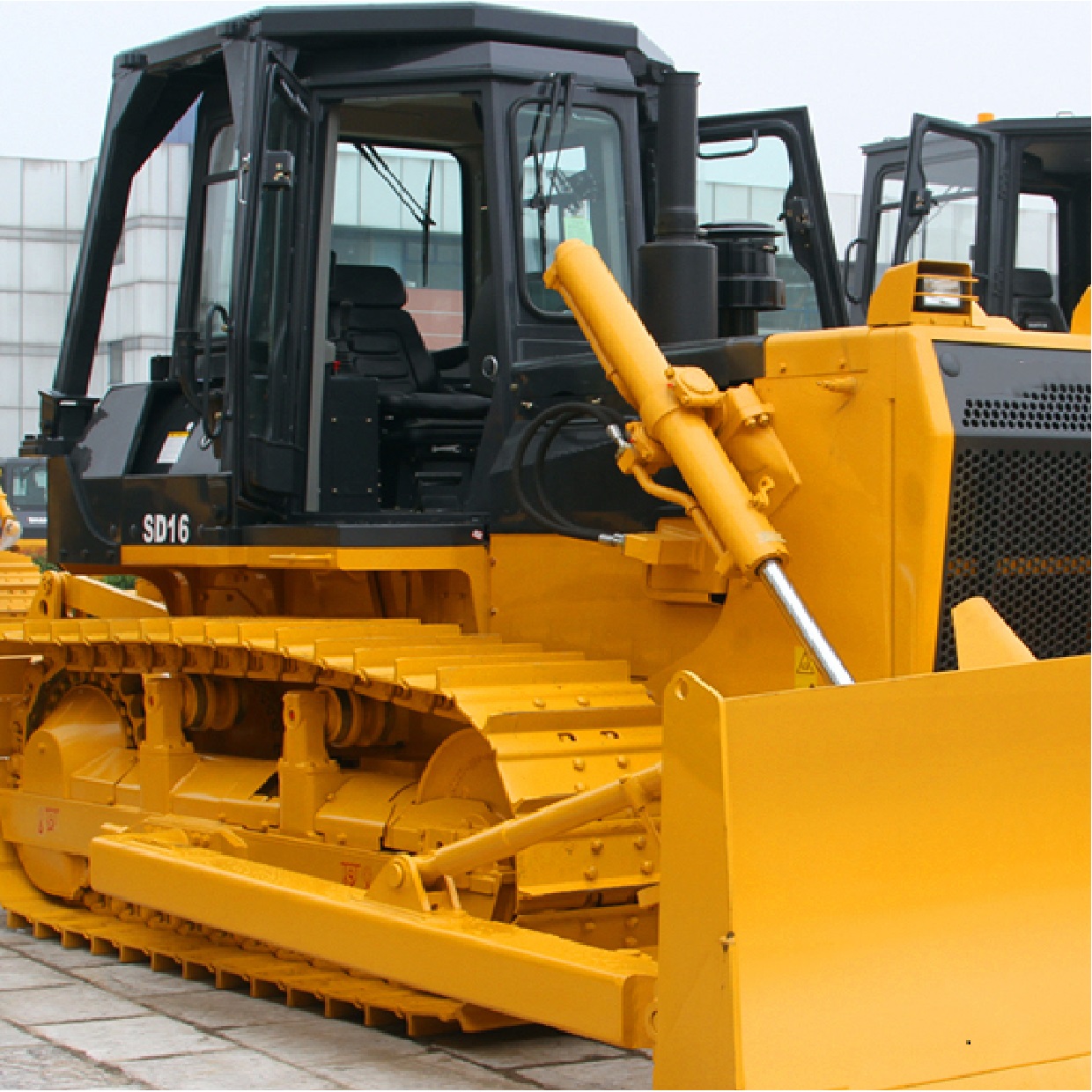

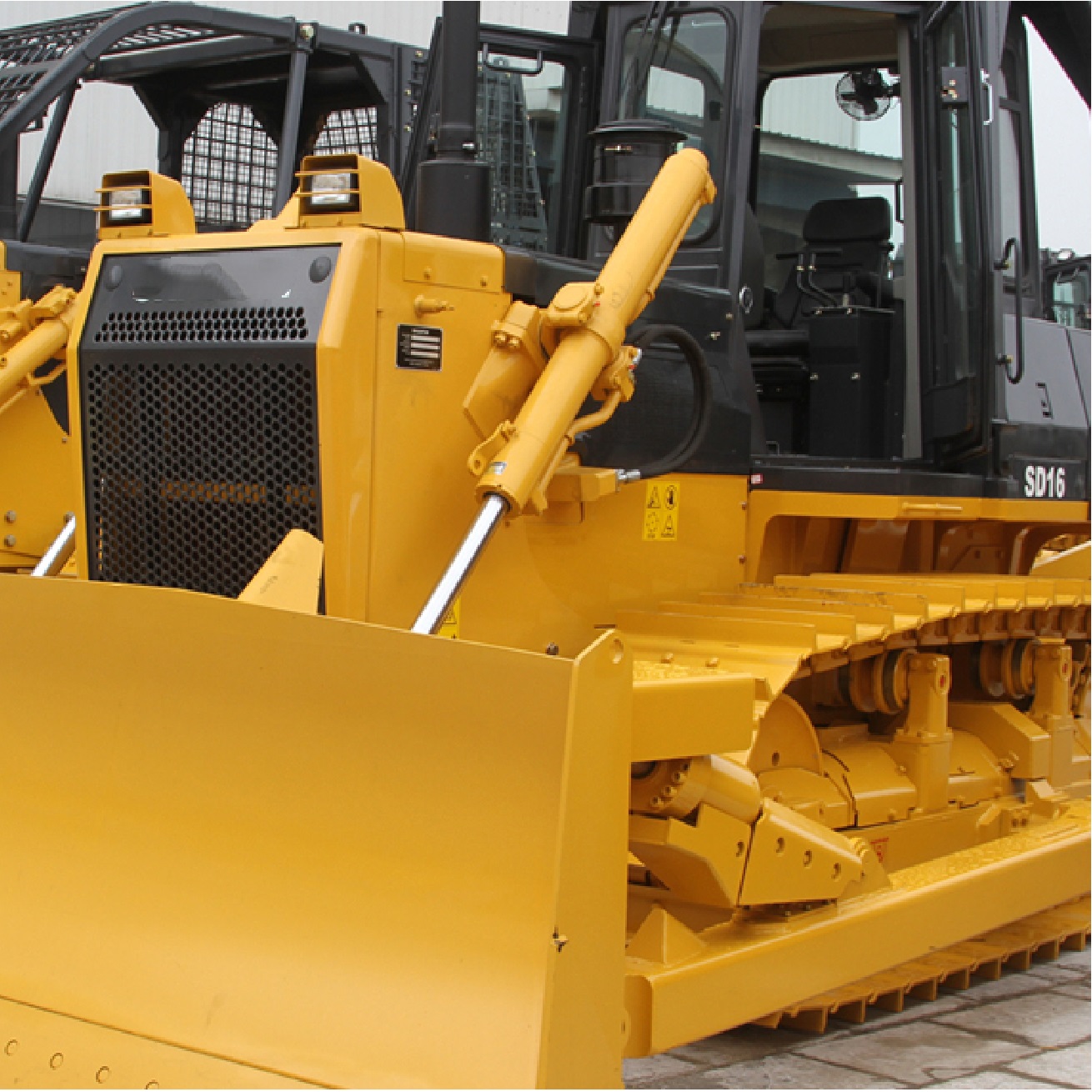

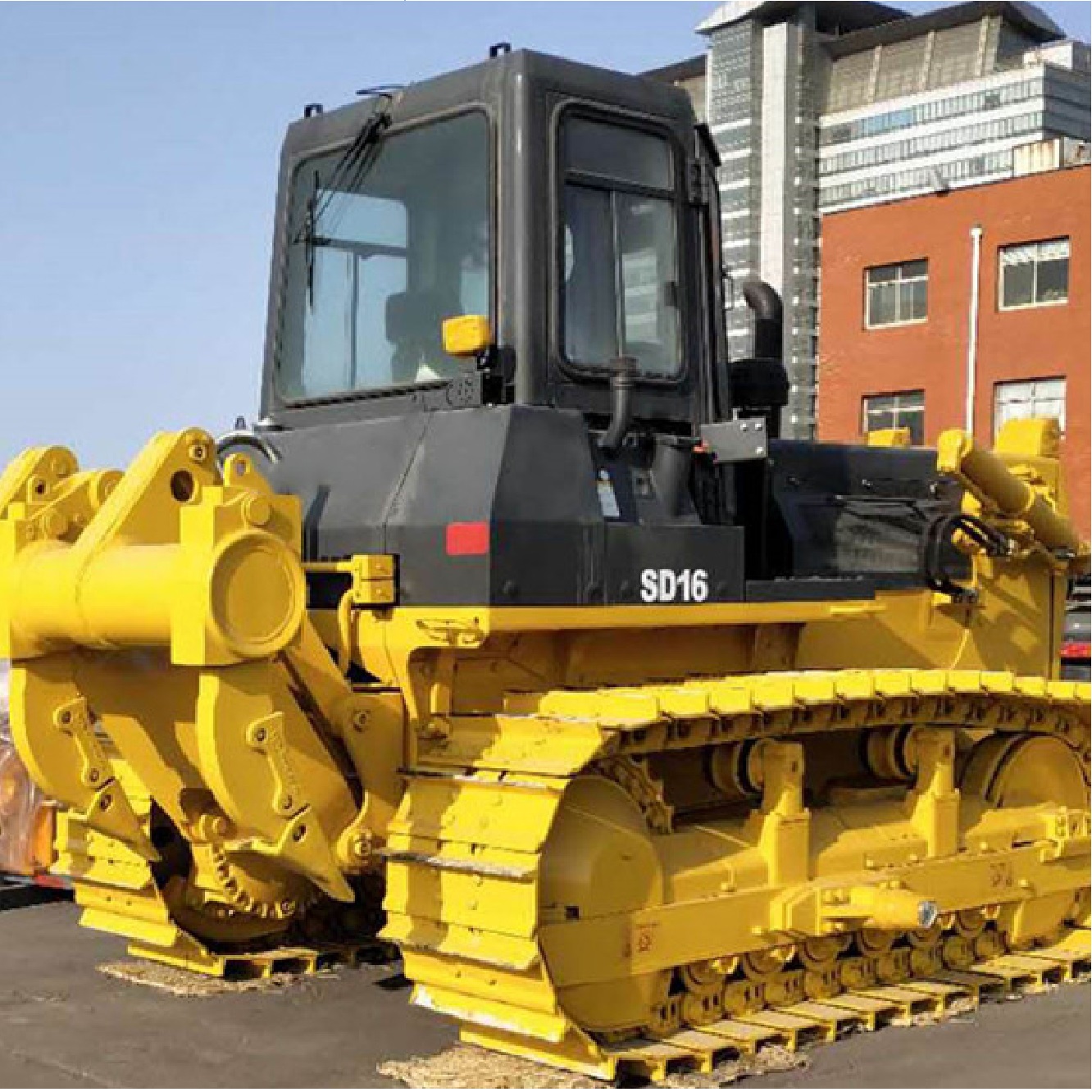

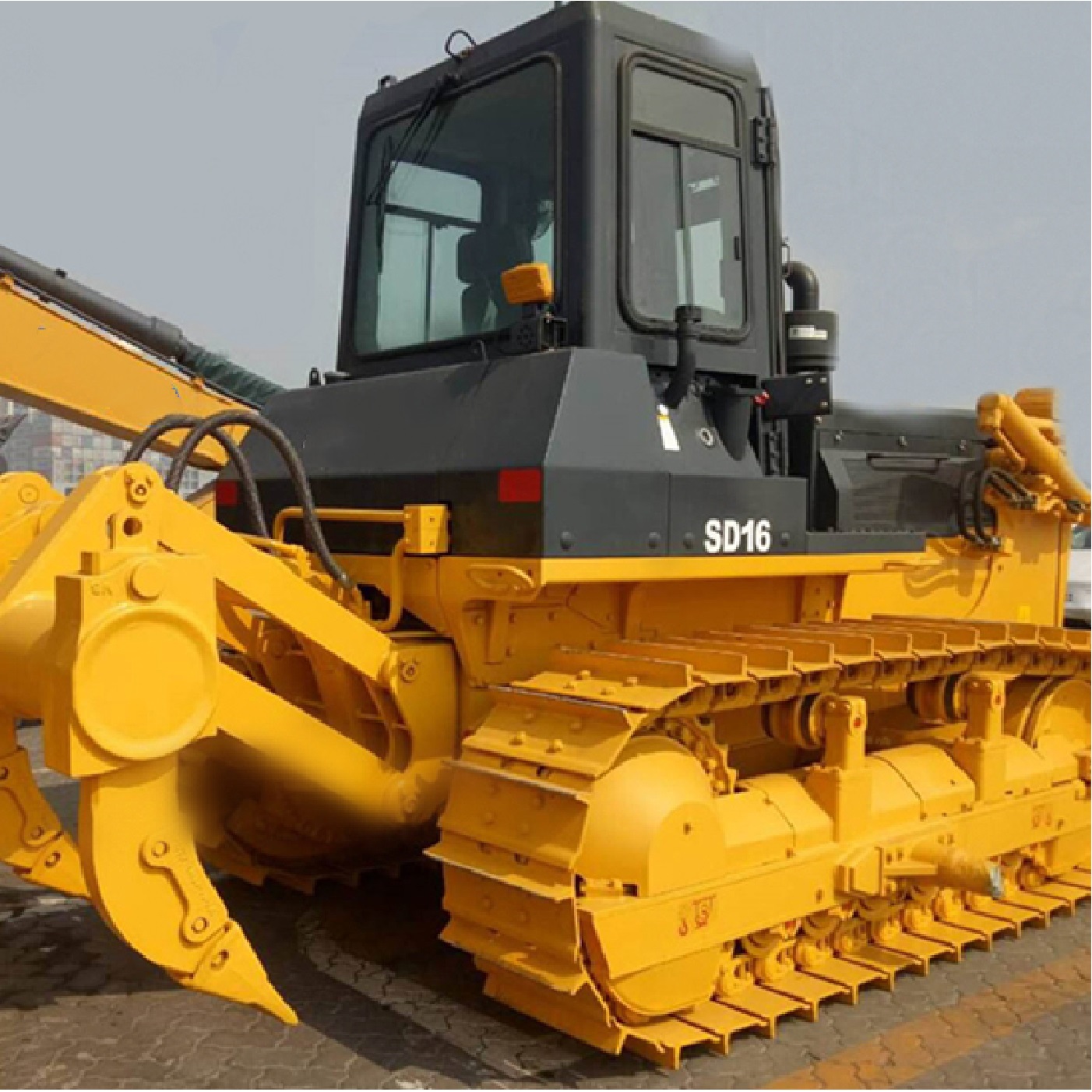

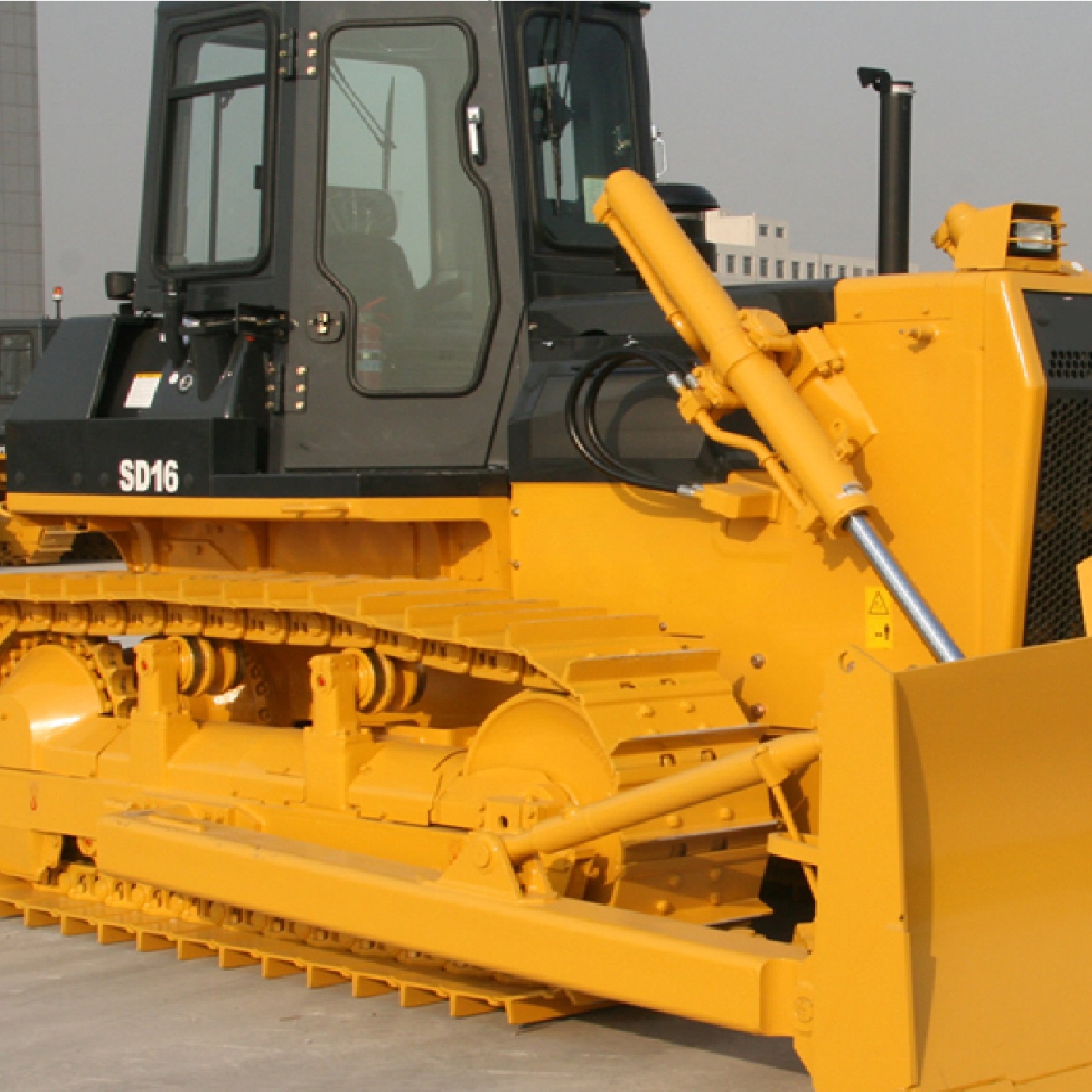

160HP Crawler Bulldozer SD16 Reliable Construction Equipment

- The SD16 hydraulic bulldozer has the characteristics of high technological content, advanced and reasonable design, strong power, and high production efficiency. It can adapt to harsh working environments and is easy to maintain. It is mainly suitable for pushing, excavating, backfilling soil and stone, and other loose materials on the ground such as farmland, water conservancy, highways, railways, airports, etc. It is an indispensable mechanical equipment for national defense engineering, urban and rural road construction, and water conservancy construction.

- Equipped with WP10 electronic control engine, it meets the national non road machinery National III emission requirements, with strong power, high efficiency and energy saving, and low maintenance costs;

- The torque reserve coefficient is large, and the rated power reaches 131kW;

- Adopting a radial sealed intake system effectively improves the service life of the engine.

- The standard configuration includes a six-way blade to enable compound actions and flexible operations. Optional attachments such as the three-tooth ripper, hydraulic winch, and 3D automatic leveling system are available and the low ground pressure design makes it exceptionally well-suited for operations in wetland environments.

ITEMUNITSD16
L×W×H (Ripper not included)mm6104×3388×3032
Operating weight (Ripper not included)t17
Engine-Shangchai SC11CB184G2B1/ Weichai WD10G178E25
Rated powerkW/rpm135/1850 110/1850
Gradeability°30
Blade type-Straight tilt blade U blade Angle blade
Blade widthmmStraight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040
Dozing capacitym3Straight tilt blade 4.5 U blade 5     Angle blade 4.3
Ma× drop below ground of blademm540
Lift height of blademm1095
Ripper type-Three-shank ripper
Ripping depth of rippermm572
Lifting height of rippermm592
Number of carriers (each side)-2
Number of track rollers (each side)-6
Number of track shoes (each side)-37
Width of track shoemm510
Track gaugemm1880
Ground length and ground pressuremm/MPA2430-0.067
Pitchmm203.2
Forward speedkm/h0-3.29
0-5.82
0-9.63
Reverse speedkm/h0-4.28
0-7.59
0-12.53
