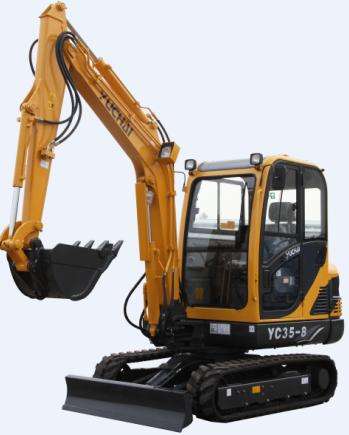

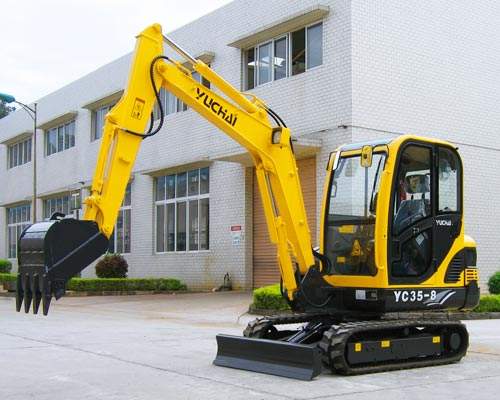

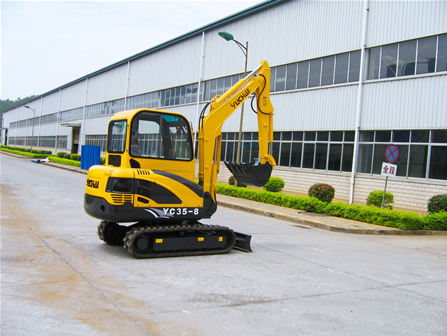

YUCHAI Yc35-8 Mini Crawler Excavator
Model:
Yc35
View All >
Category:
Earthmoving Machinery
Product:
Crawler Excavator
Brand Name:
YUCHAI
Dimension (mm):
4950*2470*1618mm
Operating weight (kg):
3740 kg
Origin:
China
Min Order Quantity:
1 Unit
Delivery Time:
50 days
Summary
Bucket capacity:
0.12
PowerMachine Weight:
Machine Weight
Warranty:
1 Year
Moving Type:
Crawler Excavator
Specifications
Bucket capacity:
0.12 M³
Operating Weight:
3.5 ton
Transport Package:
4950*2470*1618mm
Size:
Small-Scale
Packaging & Shipping
Delivery Lead Time:
7 days for ready goods
Supply Ability:
10,000 Set/ Sets per Month
Delivery Port:
Any Port In China
Details

Excavator Model

YC15-8

YC18-9

YC35-8

Basic parameter











Machine weight

1625kg (Canopy)

1725kg (Cabin)

1700kg(Canopy)

1850kg(Cabin)

3740kg

Bucket capacity

0.04m3

0.05m³

0.12m³

Width of bucket

400mm

469mm

630mm

Performance parameter



Engine model

Ku bota D1105

Yan mar

3TNV76-PYU

Ku bota V2403

Engine power

14.2KW/2200rpm

13.3kW/2200rpm

31.2kW/2200rpm

Max. Gradeability

58%(30°)

58%(30°

58%(30°

Max. digging force of arm

6.2KN

12.5kN

17.4kN

Max. digging force of bucket

7.7KN

8kN

22.2kN

Traveling speed

1.6~2.8 km/h

2km/h

3.4/4.8km/h

Max. hauling force

8.8kN

18.1 kN

29kN

Slewing speed of platform

10~12rpm

10~12rpm

11~13rpm

Operating parameter



Max. digging height

2940mm

2940mm

5200mm

Max. digging depth

1810mm

1895mm

3535mm

Max. digging radius

3570mm

3645mm

5590mm

Max. digging radius on ground level

3460mm

3540mm

5486mm

Max. dumping height

2040mm

1955mm

3680mm

Min. slewing radius

1700mm

1720mm

1990mm

Max. vertical digging depth

1210mm

1225mm

2413mm

Transportation dimension



Overall length

3600mm

3595mm

5250mm

Overall width

1000-1300mm

990mm

1518mm

Overall height

2245mm(with Canopy)

2310mm(with Cabin)

2275mm(with Canopy)

2340mm(with Cabin)

2470mm

Other Parameter





Width of undercarriage

1000-1300mm

1000-1300mm

1518mm

Length of track

1405mm

1585mm

2100mm

Width of track

230mm

230mm

300mm

Height between undercarriage and ground

190mm

180mm

302mm

Height between platform and ground

414/453mm ext.chassis

460mm

570mm

Platform tail turning radius

1175mm

1140mm

1515mm

Track gauge

1045mm

760mm

1620mm

Fuel tank capacity

21L

20L

48.5L

Hydraulic oil tank capacity

32L

22L

54.5L



Type and flow rate of pump

Constant Flow Pump 2*17.6+6.6 L/min

Constant Flow Pump

2*17.6+6.6 L/min

Variable Pump

2*45+15.4 L/min
